XIANG LIVESHOW

Project Background: XIANG LIVESHOW

Design Keywords: Matrix Acoustic Walls, Transparent Grid Screen, Professional Line Array PA System, Full-Scene Immersion

In the construction of modern top-tier Livehouses, visual impact and audio fidelity are the core elements. XIANG LIVESHOW is not just a simple performance venue; it provides a flawless, dead-zone-free audio-visual energy field for the audience through the deep integration of precisely calculated architectural acoustics and a high-power public address (PA) system.

A flawless performance space relies on a rigorous, often unseen integration phase. Long before the architectural finishes go up, every subsystem—from the stage visuals and PA drops to the acoustic treatments and miles of cable—must be meticulously aligned.

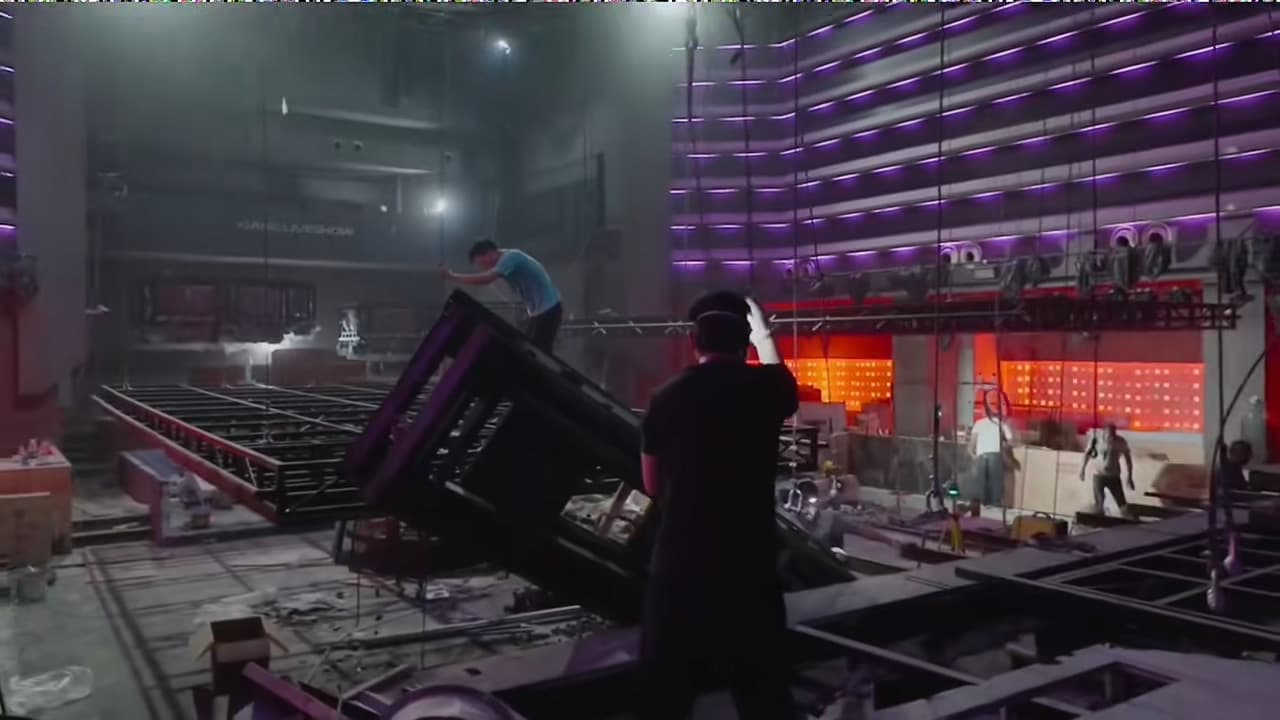

The site photo captures this raw, behind-the-scenes reality. It isn't a polished opening night, but the critical groundwork of system integration. This is where the stage grid actually takes shape: where the structural rigging is dialed in, cable routes are finalized, maintenance access is mapped out, and phased commissioning begins before the space is permanently sealed.

XIANG LIVESHOW abandons the crowded, standing-only viewing mode of traditional Livehouses in favor of a more high-end, comfortable, and wraparound layout.

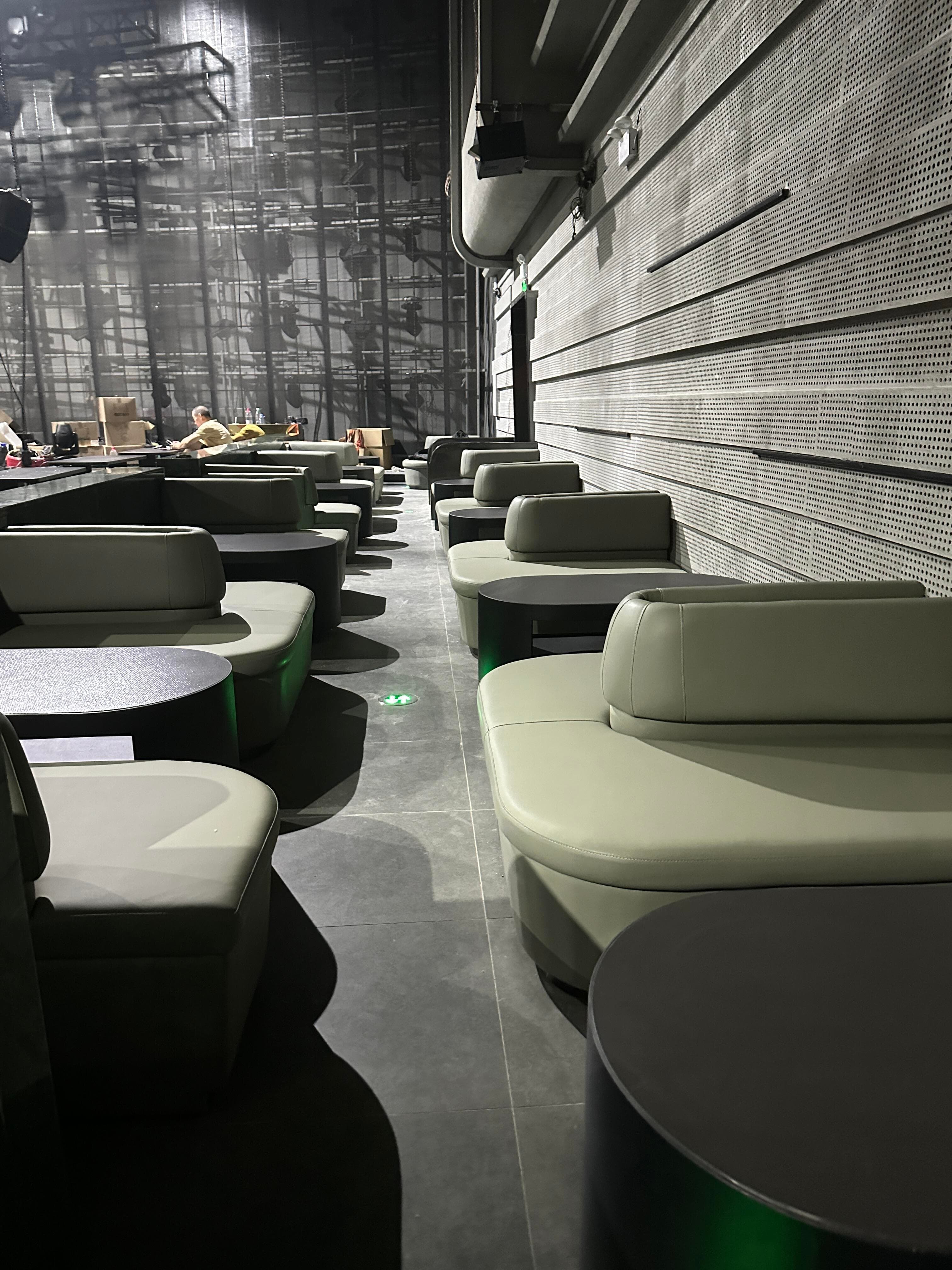

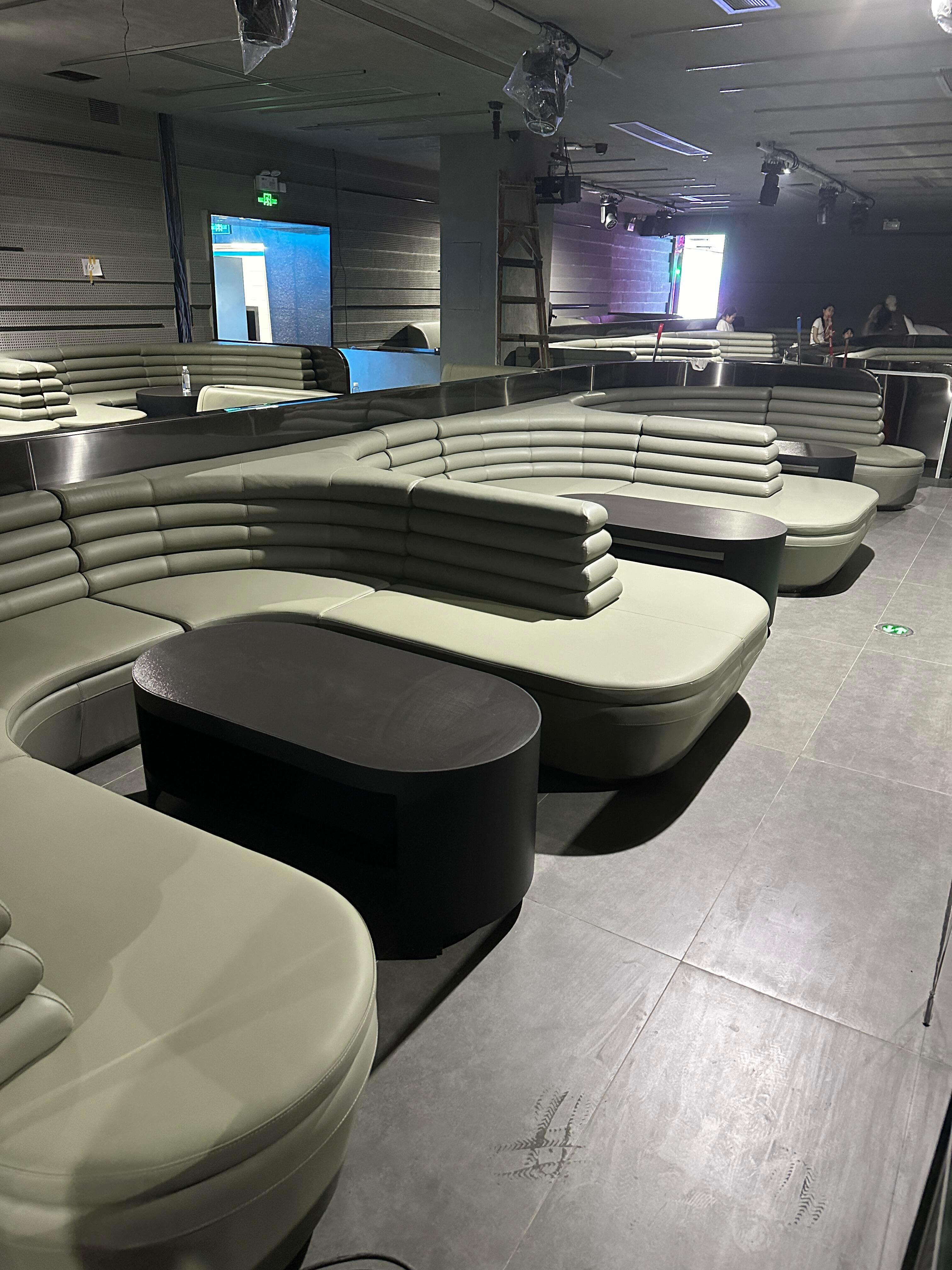

Streamlined Tiered Booths: The venue features U-shaped, streamlined leather sofas. The grayish-green tones exhibit excellent texture under cool lighting. The tiered height difference ensures an unobstructed view straight to the stage, even from the very last row.

Balance of Socializing and Privacy: The wide, matte black coffee tables and wraparound seating layout not only cater to multi-person socializing needs but also create a relatively private, enveloping viewing experience through the physical separation of the seats.

The venue's wall design is the pinnacle of combining functionality with artistry, focusing on solving acoustic defects common in large spaces.

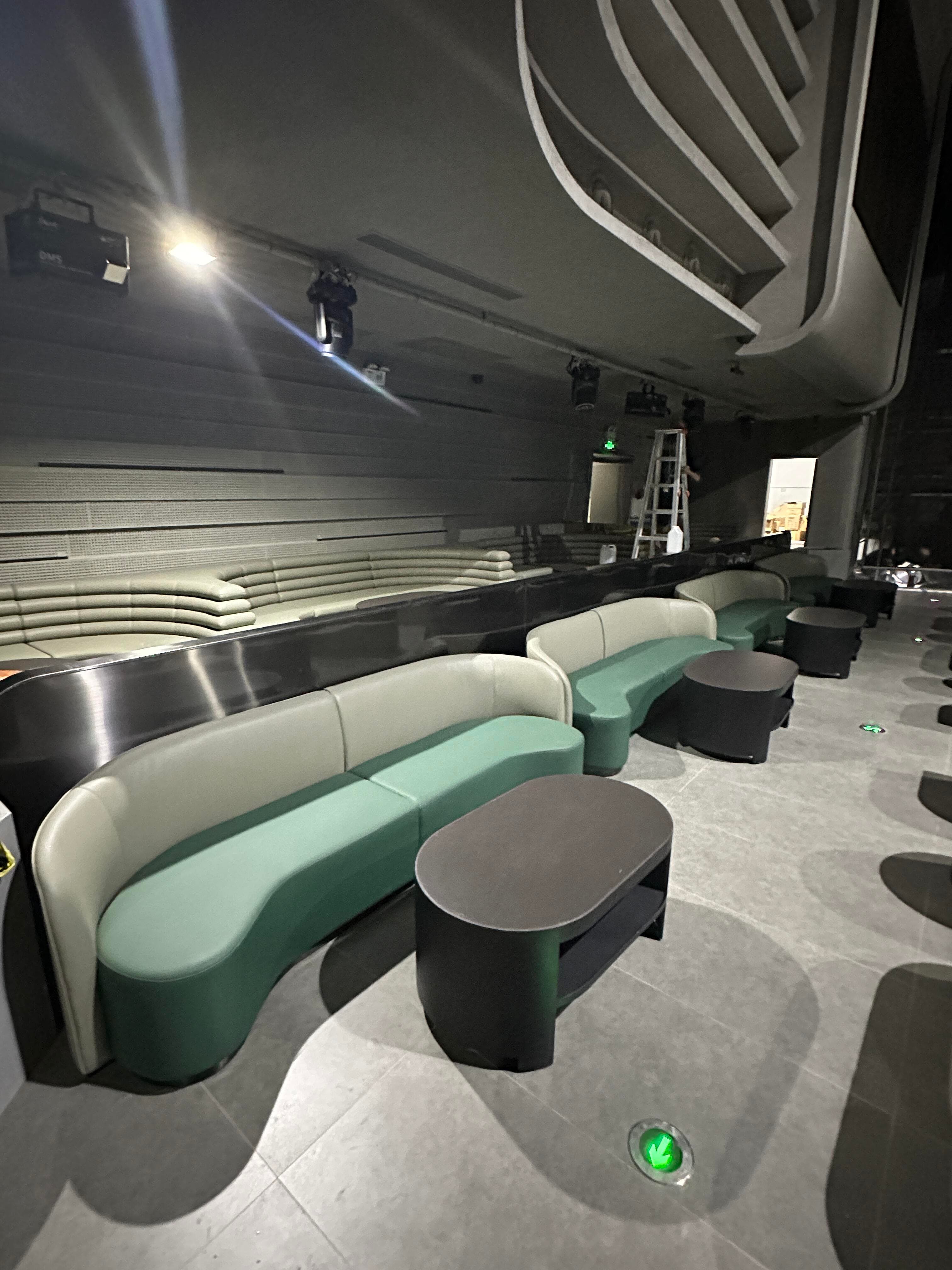

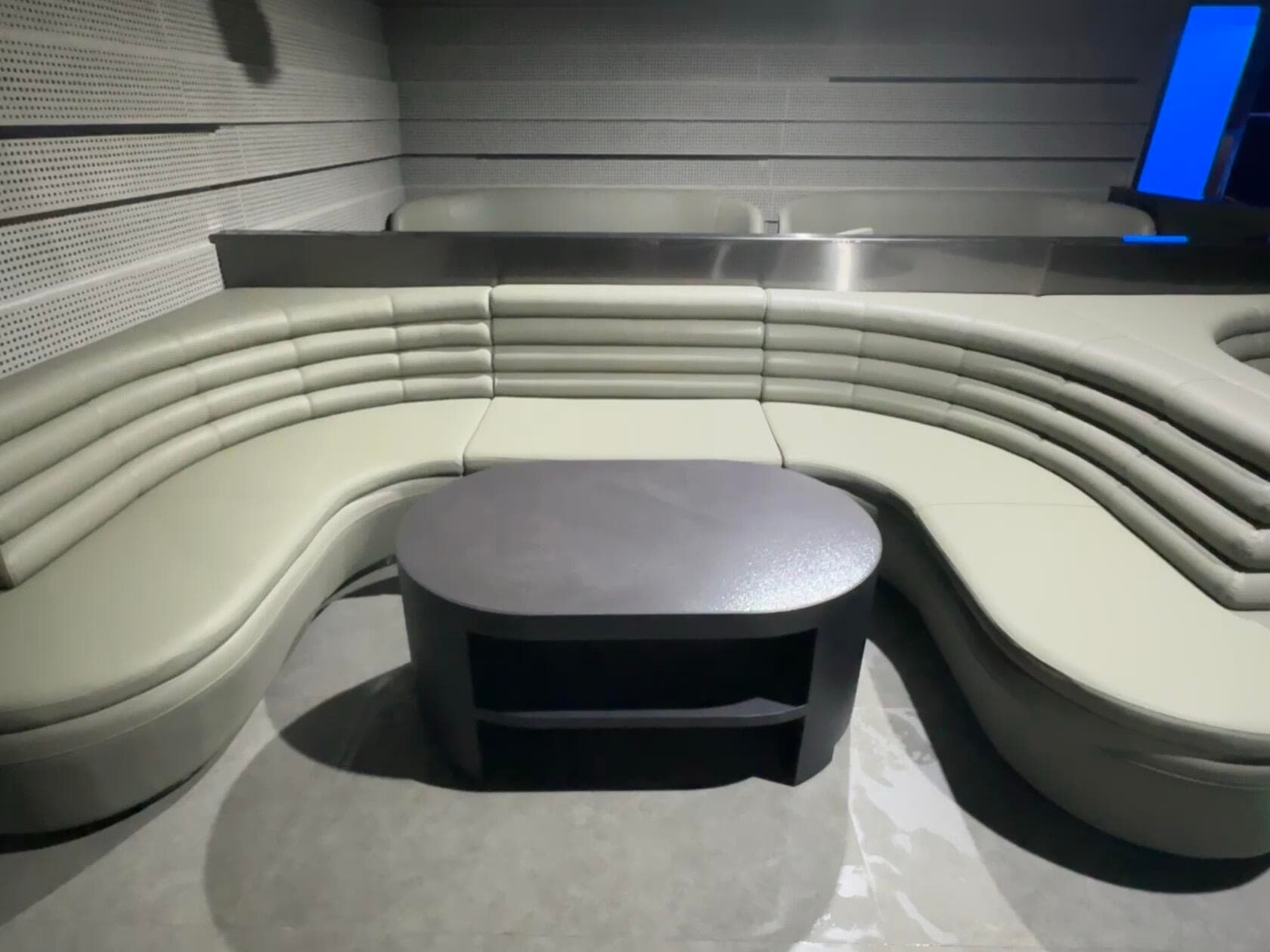

Asymmetrical Variable-Height Perforated Panels: The walls do not use a standard flat layout; instead, they consist of staggered, perforated acoustic panels with varying surface heights. This step-like physical structure breaks up parallel sound wave reflections, effectively eliminating flutter echoes.

Full-Band Absorption and Diffuse Reflection: The precisely calculated pore diameters and rear cavities of the panels, combined with the undulating surfaces, scatter and partially absorb the direct sound from the stage. This controls the reverberation time, ensuring both Speech Intelligibility and the layered richness of the music.

The PA system is the soul of a Livehouse. To handle the high-intensity electronic music and live band performances, XIANG LIVESHOW is equipped with a top-tier professional sound reinforcement chain.

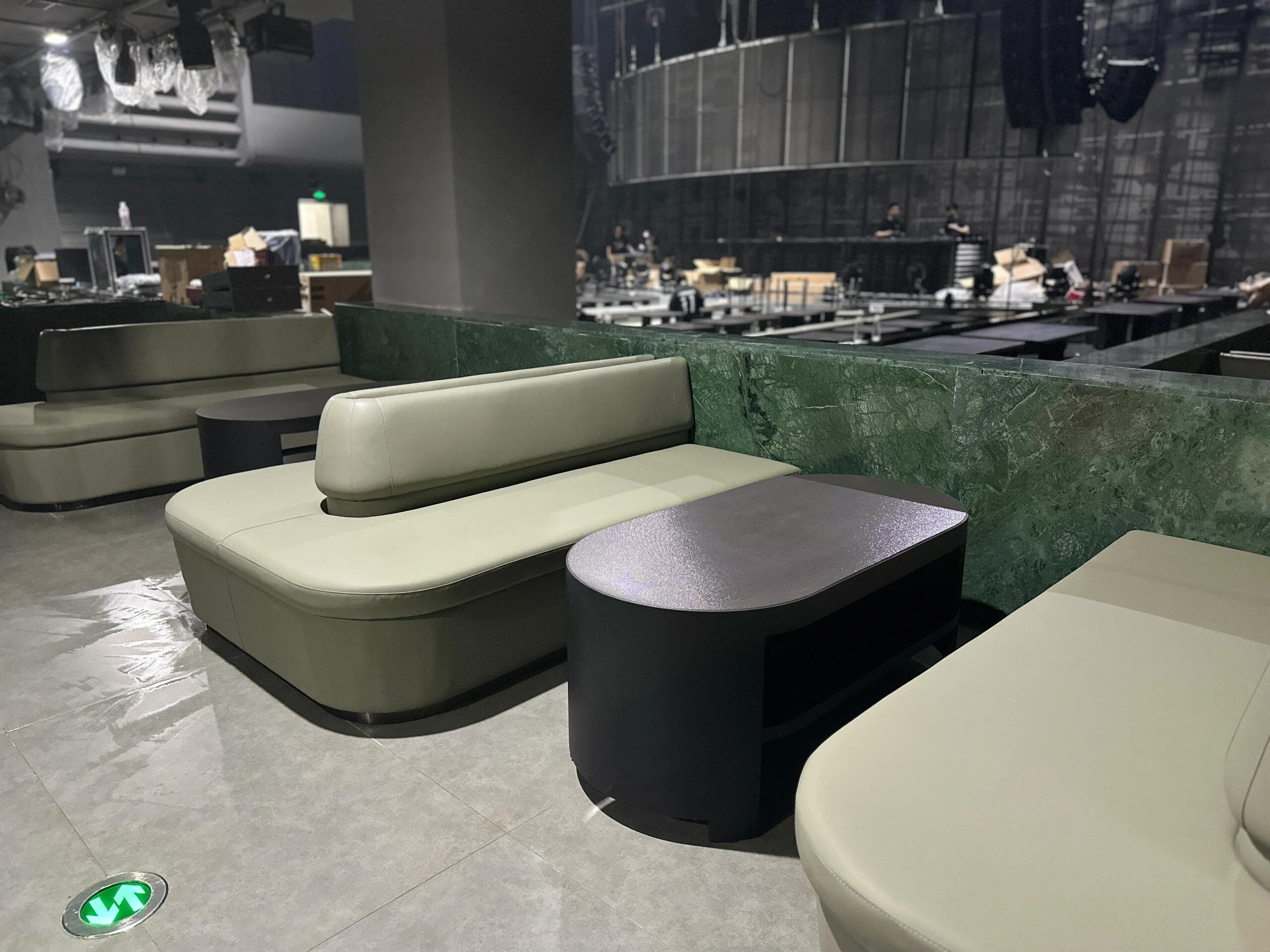

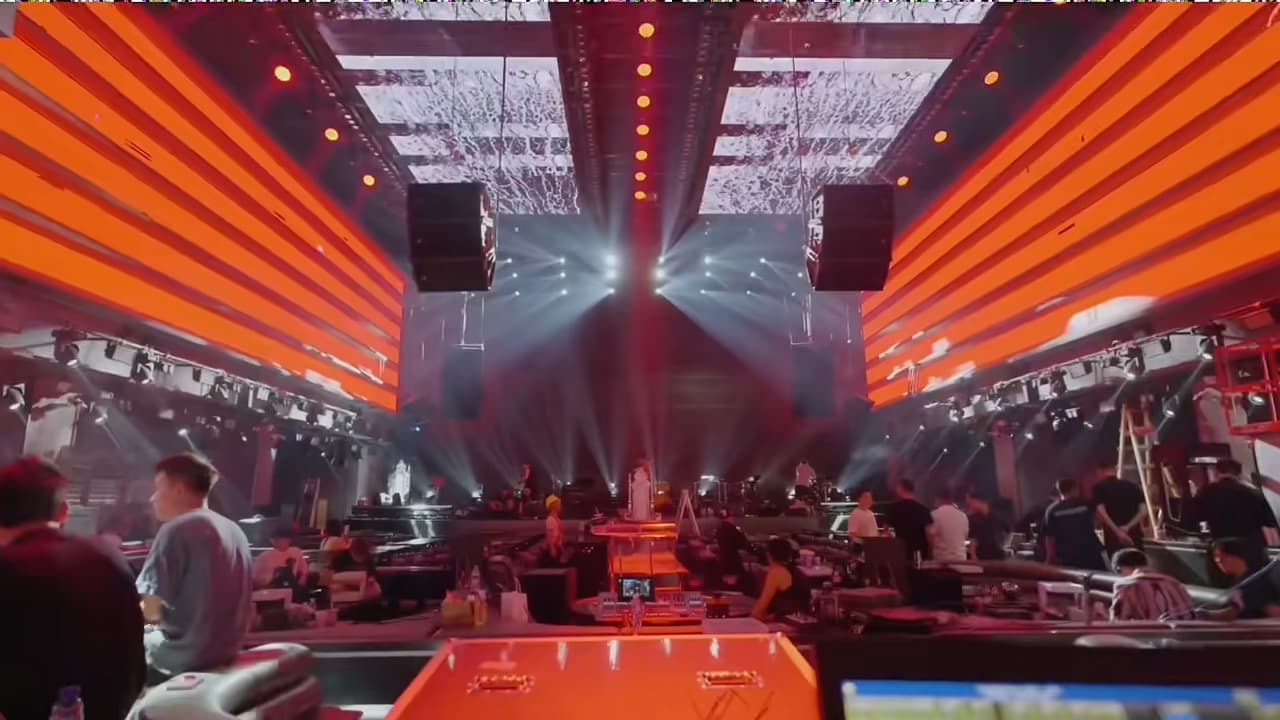

High-Power Line Arrays (Main PA): Large-caliber, high-sensitivity line array speakers are suspended on the left and right sides above the stage. This "flown" installation not only saves floor space but also uses precise downward tilt angles to direct sound energy over the front rows, uniformly covering the tiered booths at the back, keeping SPL (Sound Pressure Level) fluctuations to an absolute minimum across the venue.

Subwoofer Matrix and Fill Systems: Recognizing the critical importance of low-frequency performance in a Livehouse, high-performance subwoofers are embedded beneath or to the sides of the stage, creating a powerful low-frequency wavefront. Additionally, point-source fill speakers are deployed on the side wings to ensure a full-bodied soundstage in every corner.

Digital Drive and Time Alignment: All speakers are centrally managed by digital audio processors. Millisecond-level delay compensation is applied to speakers in different locations, ensuring the sound reaching the audience is highly phase-aligned, preventing acoustic image shift.

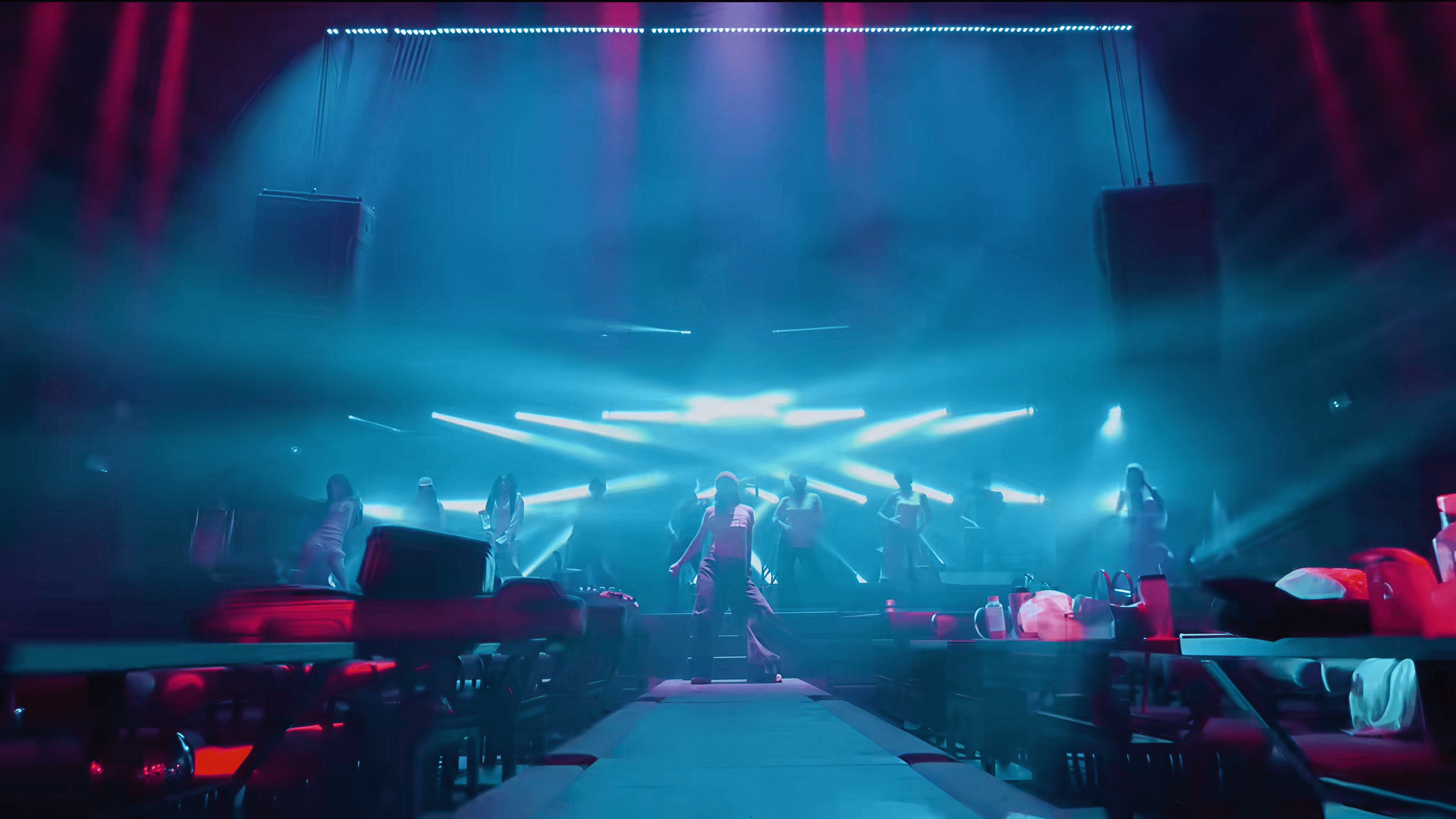

Lightweight Grid Screen: The stage backdrop utilizes a high-transparency grid screen. Compared to traditional LED walls, the grid screen is nearly transparent when not displaying content, allowing light and mechanical equipment behind it to shine directly into the space, creating a highly dimensional, deep-field visual effect.

Light and Shadow Synergy: When the visual assets on the screen synchronize with the surrounding lighting matrix, beams of light seem to burst forth from the images, shattering the physical boundaries of the screen.
