A Paradigm Shift from "Massive Volume" to "High Precision"

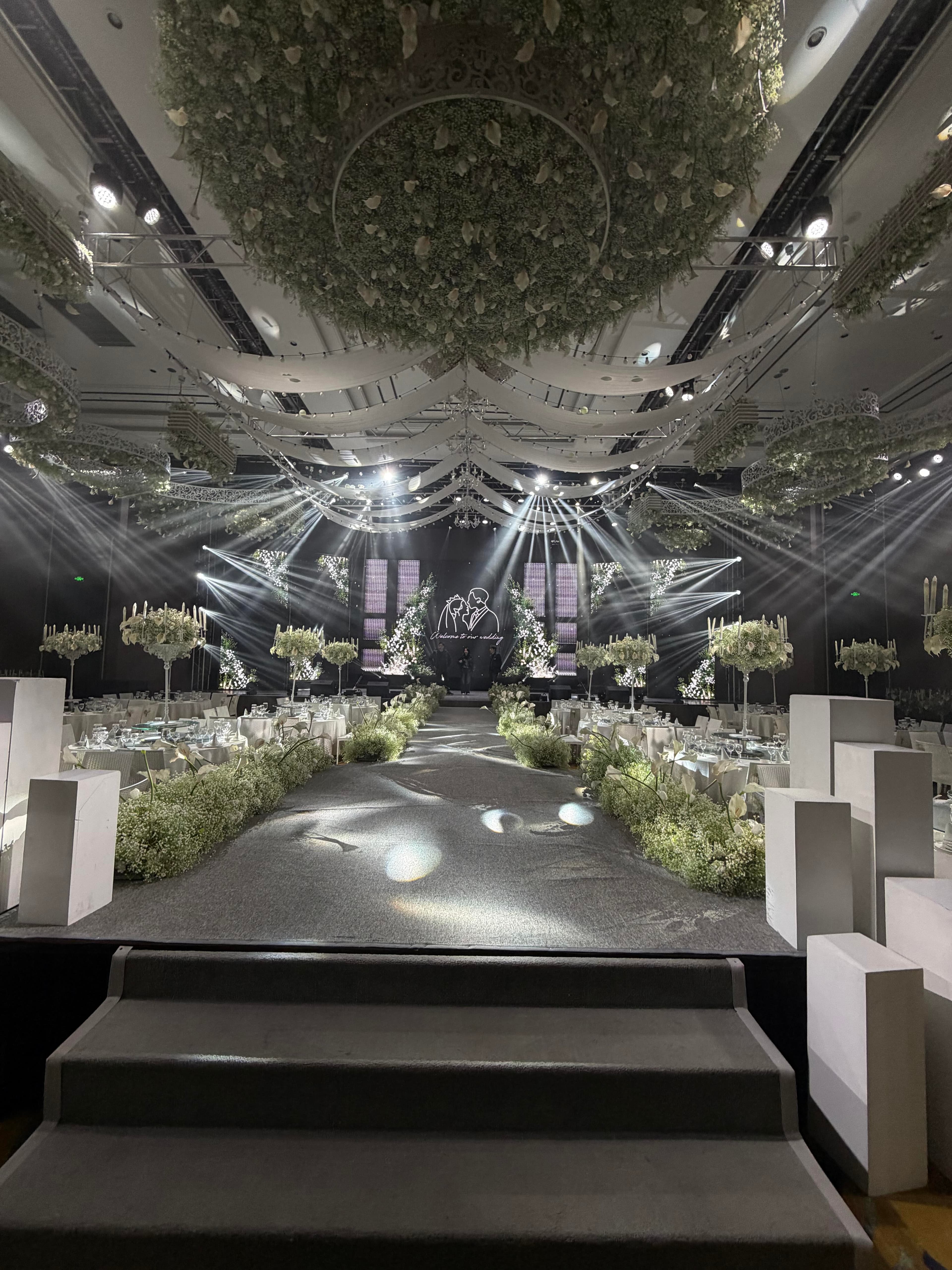

This project showcases a bespoke ballroom deeply adapted for low-tier ceiling heights. The core engineering challenge lay in stealthily embedding complex MEP and AVL infrastructure within extremely limited vertical space. Through a "Low-Profile Integration" solution, we achieved a seamless transition between diverse scenarios - from "Minimalist Pure White" to "Deep Sea Illusion" - without sacrificing the perception of height, while simultaneously resolving sound feedback and sightline obstruction issues common in small-volume spaces.
Ultra-thin Mechanics and Vertical Stretching
A 4-meter ceiling height dictates that the overhead structure must achieve "pixel-level" fusion with the architectural interface.

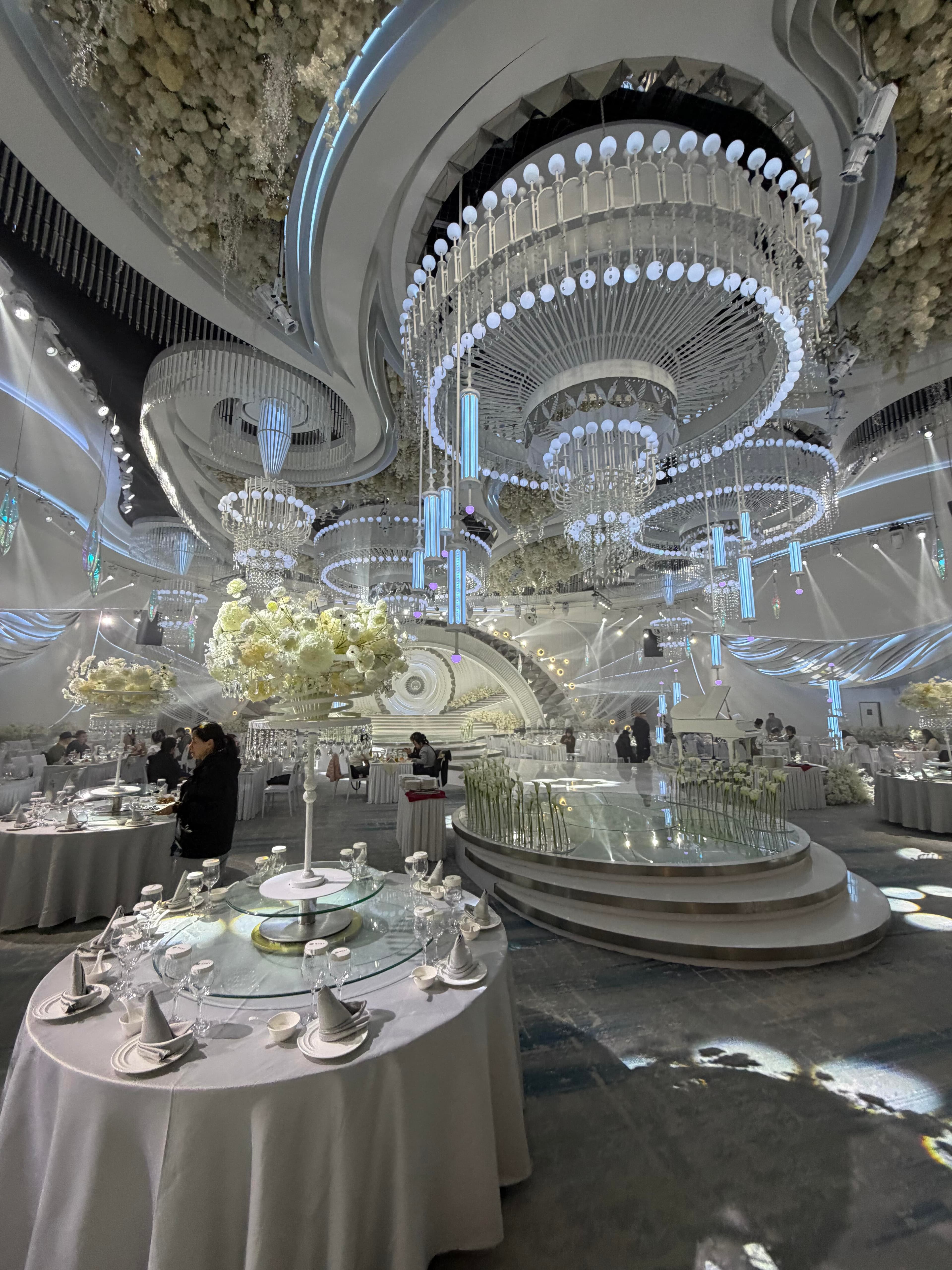

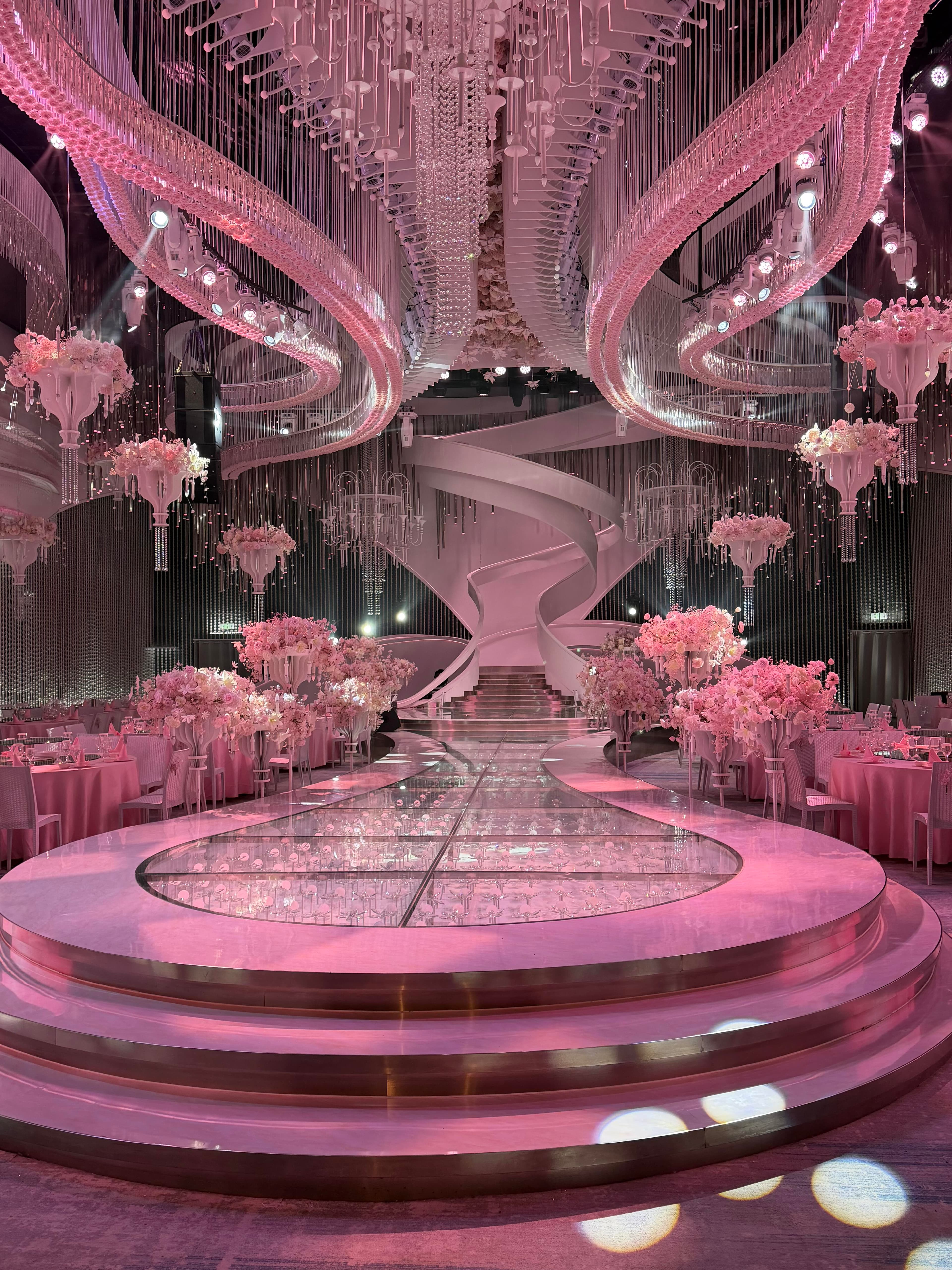

Low-Profile Embedded Structures: We discarded heavy trusses in favor of customized ultra-thin motorized lifting systems and embedded tracks. For instance, in the pink-themed scenario, a three-dimensional curved light-and-shadow installation extends along the ceiling via multi-point micro-hoists. In the "Ice and Snow" theme, a multi-tiered concentric ring lighting array is mounted via an ultra-thin chassis to avoid any visual sagging.

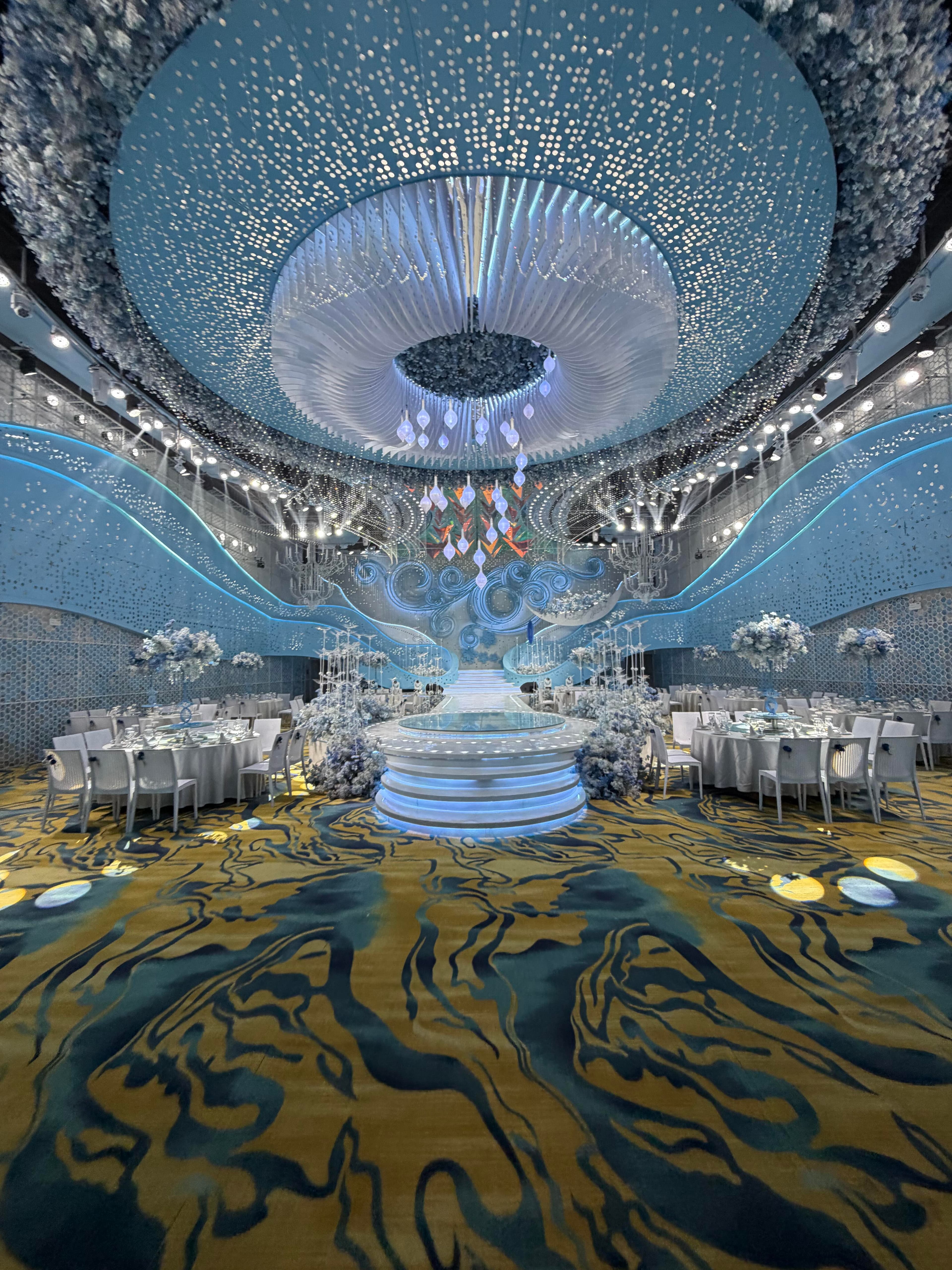

Vertical Visual Stretching: For the "Ocean" theme, we utilized high-density LED point matrices paired with a panoramic starry sky ceiling. By leveraging the sense of depth provided by cool tones, we "stretched" the vertical height psychologically, eliminating the sense of oppression caused by limited physical space.
Non-direct Matrices and Linear Visual Sculpting
In spaces with lower heights, high-power, long-throw beams can cause severe glare or even a sense of burning due to their proximity to the audience.
Distributed Light and Shadow Matrix: We replaced large moving-head beams with high-density distributed micro-profile lights and linear ambient light strips. Through non-direct lighting design, light is no longer a "sword" splitting the space vertically, but a "line" flowing along the ceiling's geometric contours. It carves a delicate sense of volume in the air, creating a warm, cathedral-like soft atmosphere.
LED Visual Anchors: The seamless high-refresh LED screens in the stage area are modularly integrated with the background decorations, ensuring extreme image detail and authentic contrast even at close viewing distances.
Distributed Topologies and Low-Profile Absorption
A 4-meter ceiling height places loudspeakers very close to the audience and creates extremely short reflection paths between the ceiling and floor.
Distributed Electro-Acoustic Topology: Heavy line arrays are unsuitable for this height, as they would cause front-row overload and rear-row deficiency. We adopted a distributed point-source and concealed digital column speaker solution. By performing independent delay and phase calibration for every single loudspeaker, we achieved extreme uniformity in sound pressure levels across the venue, maintaining a high Speech Transmission Index (STI) above 0.7.

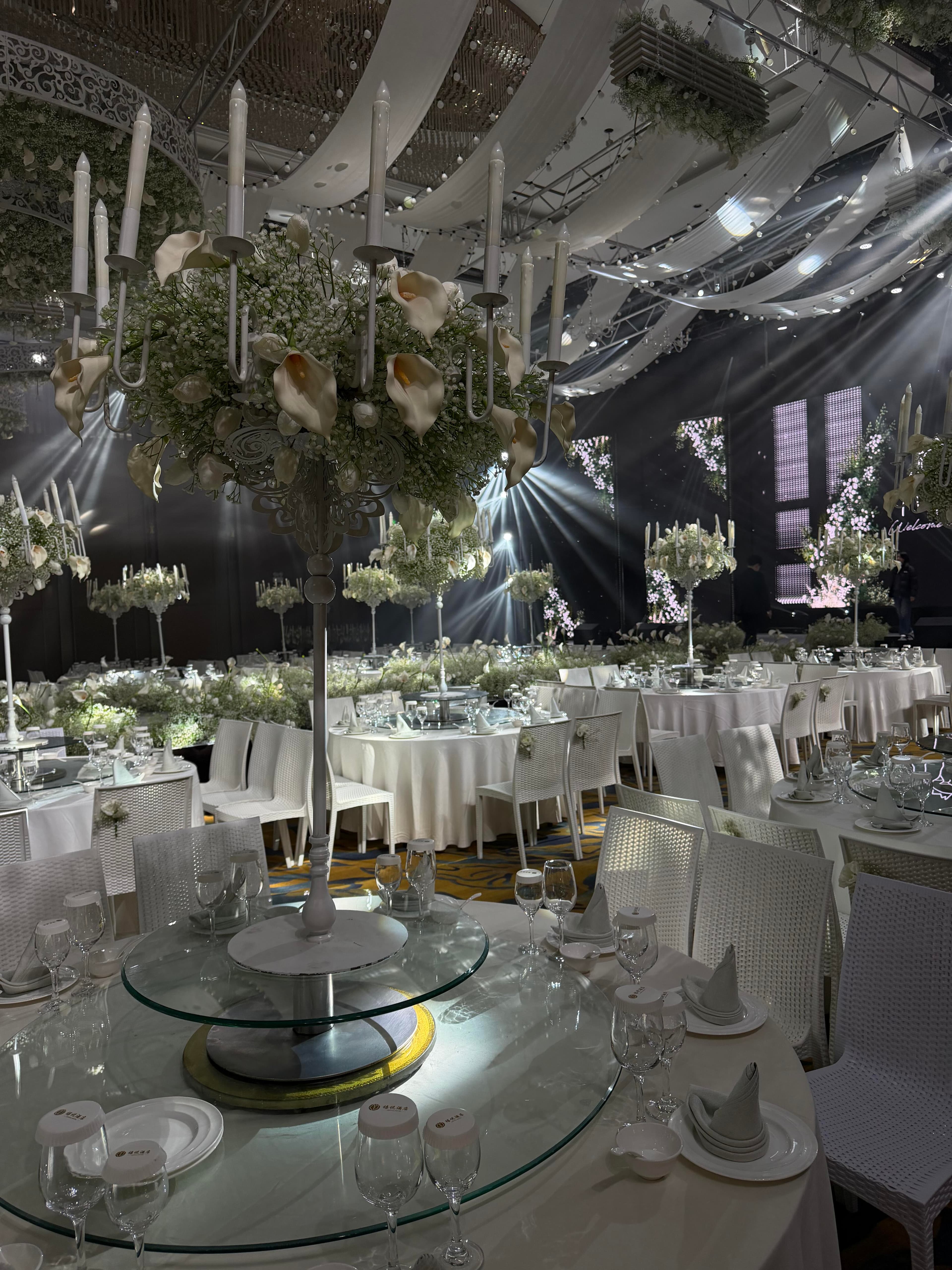

High-Efficiency Interface Absorption: The giant wave-shaped fabric drapes and floral arrangements on the ceiling are not just visual decor; they act as low-profile, broadband absorptive interfaces tightly fitted to the ceiling, effectively suppressing vertical flutter echoes.
Acoustic Impedance Flooring: The customized high-gram-weight carpets throughout the venue serve as a massive absorptive base. This layer completely eliminates vertical flutter echoes between the floor and ceiling while significantly reducing mechanical floor noise from hundreds of guests moving or clattering tableware. This rigorous background noise control allows the distributed loudspeaker system to output extremely clean direct sound with excellent transient response.
Conclusion
Under the challenge of a 4-meter ceiling height, the value of system integration lies not in scale, but in "precision." By fusing complex acoustic impedance regulation, low-profile mechanical lifting, and precision light-and-shadow matrices, TYN ACOUSTICS successfully delivered a theater-grade audiovisual experience within a compact space. Allowing the technological infrastructure to vanish visually while leaving only a pure sense of immersion is the ultimate art of integrating bespoke, small-volume spaces.
