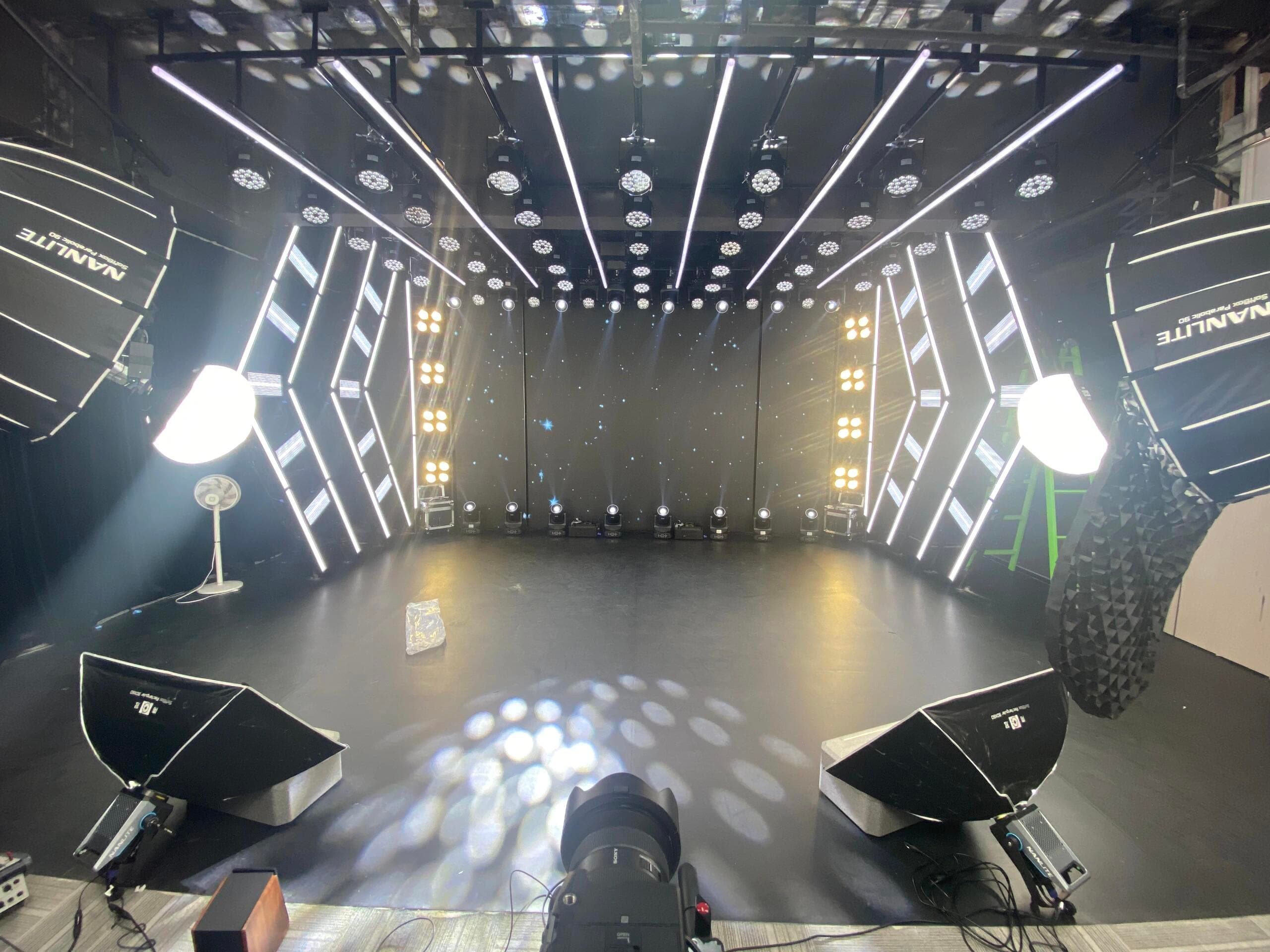

Full-Matrix Broadcast Studio

In today's entertainment and e-commerce live-streaming landscape, "Group Broadcasting" (multiple streamers interacting on one stage) has evolved far beyond simple single-camera setups. A modern, high-end group broadcast studio is essentially a high-density "miniature broadcast suite."

In this project, TYN ACOUSTICS engineered an immersive live-streaming space defined by a cyberpunk and industrial-tech aesthetic. The core engineering challenge was balancing ultra-high-intensity lighting matrices, digital flicker from LED screens, and the acoustic environment for multi-microphone arrays to output a high dynamic range (HDR) push signal with pristine audio quality for the camera lens.

Lighting is the skeletal core of the visual experience. To meet the complex lighting demands of group broadcasting, the design discarded traditional flat lighting in favor of a multi-dimensional lighting matrix:

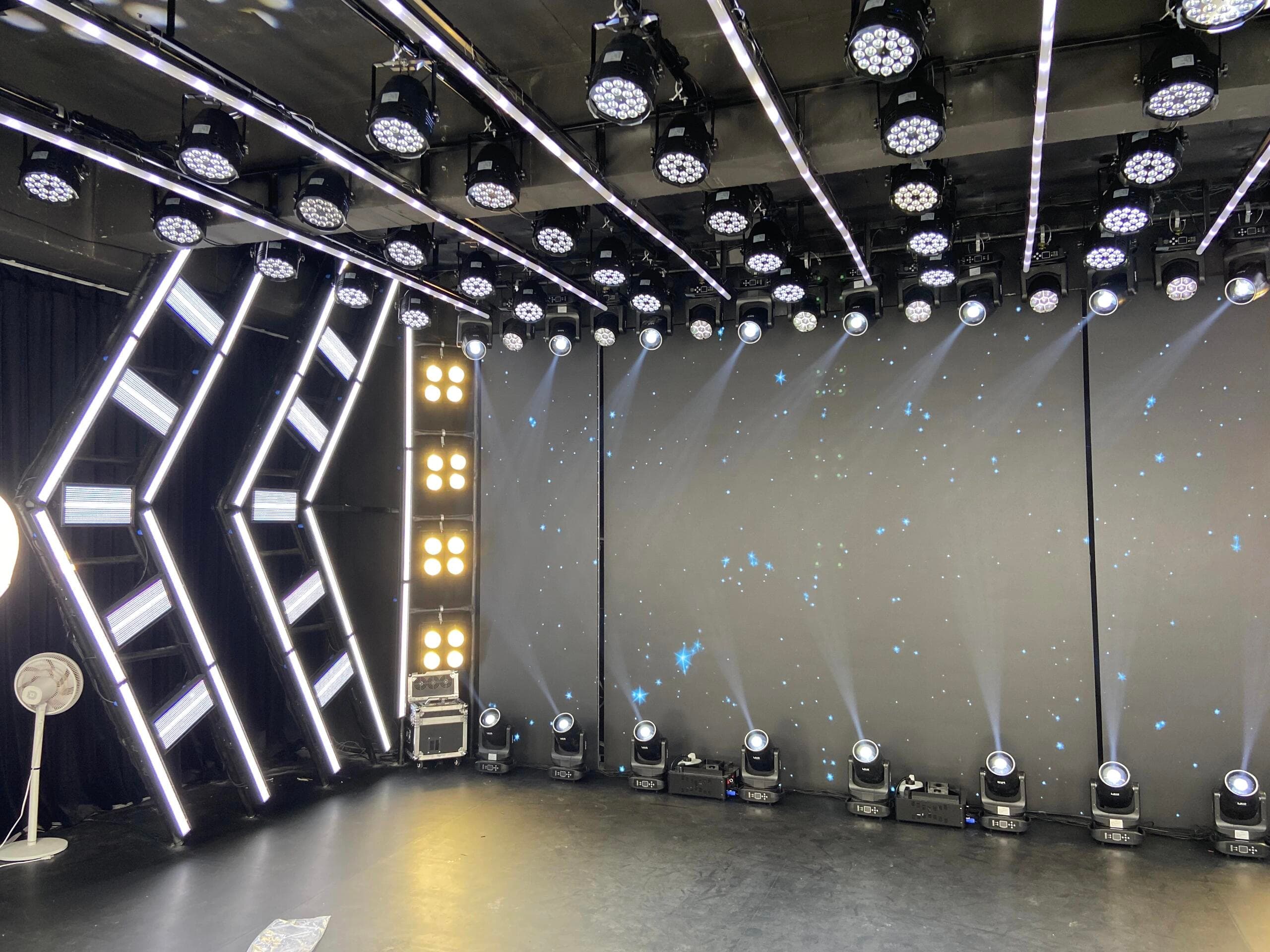

Geometric Atmosphere Lighting: On both sides of the stage, custom "arrow-shaped" metal truss structures house high-density linear LED pixel tubes and warm-toned blinder light arrays. These aggressive geometric lines not only build a strong sense of spatial depth in the lens but also ignite the visual emotion of the studio through dynamic chasing and color transitions.

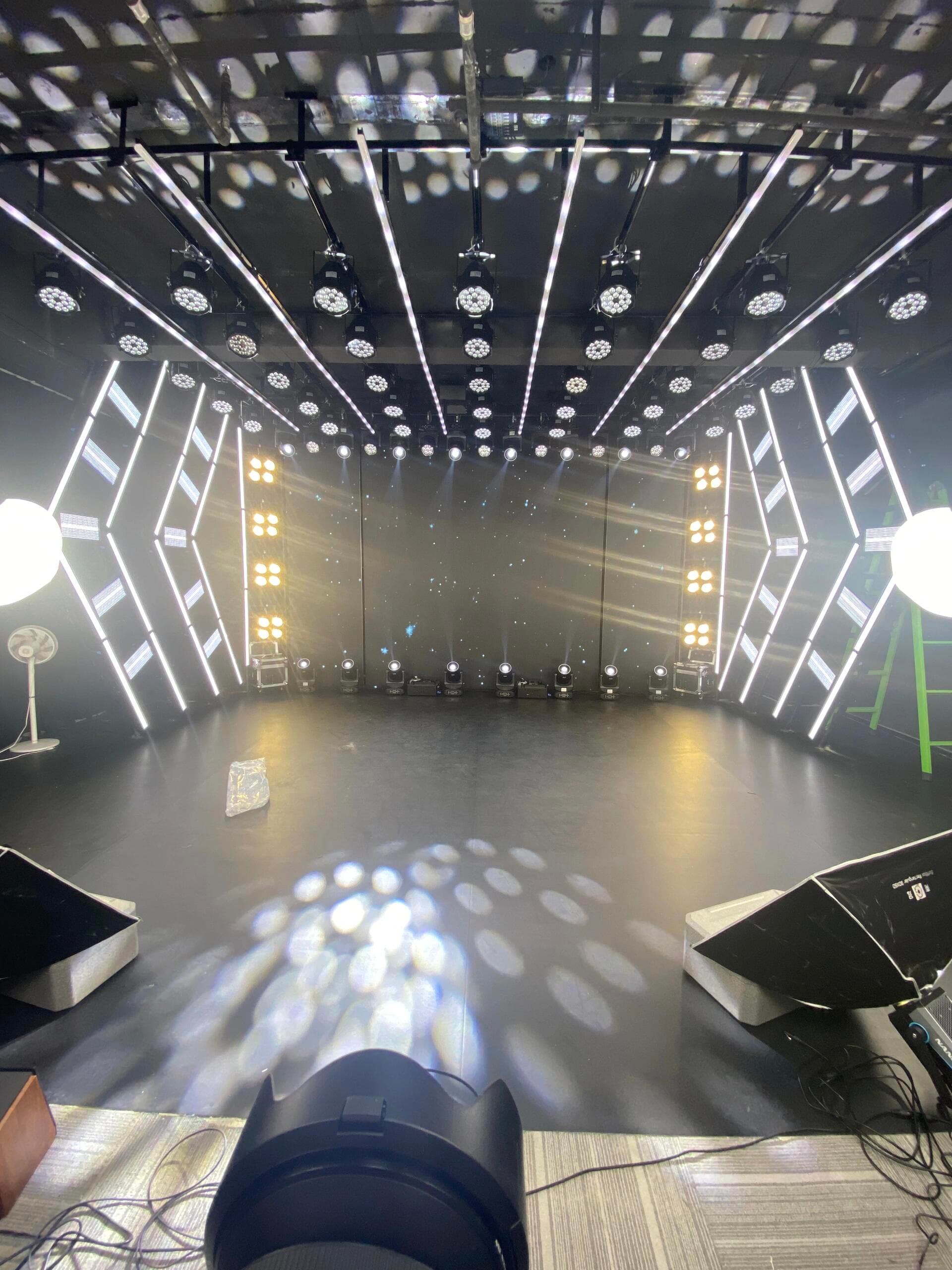

Spatial Slicing via Ceiling and Floor: A dense array of moving-head beam/wash lights and matrix linear sources are suspended from the ceiling. Combined with moving heads deployed at the base of the LED screen, they create a 360-degree intersection of light around the streamers, achieving precise spatial slicing and silhouette contouring.

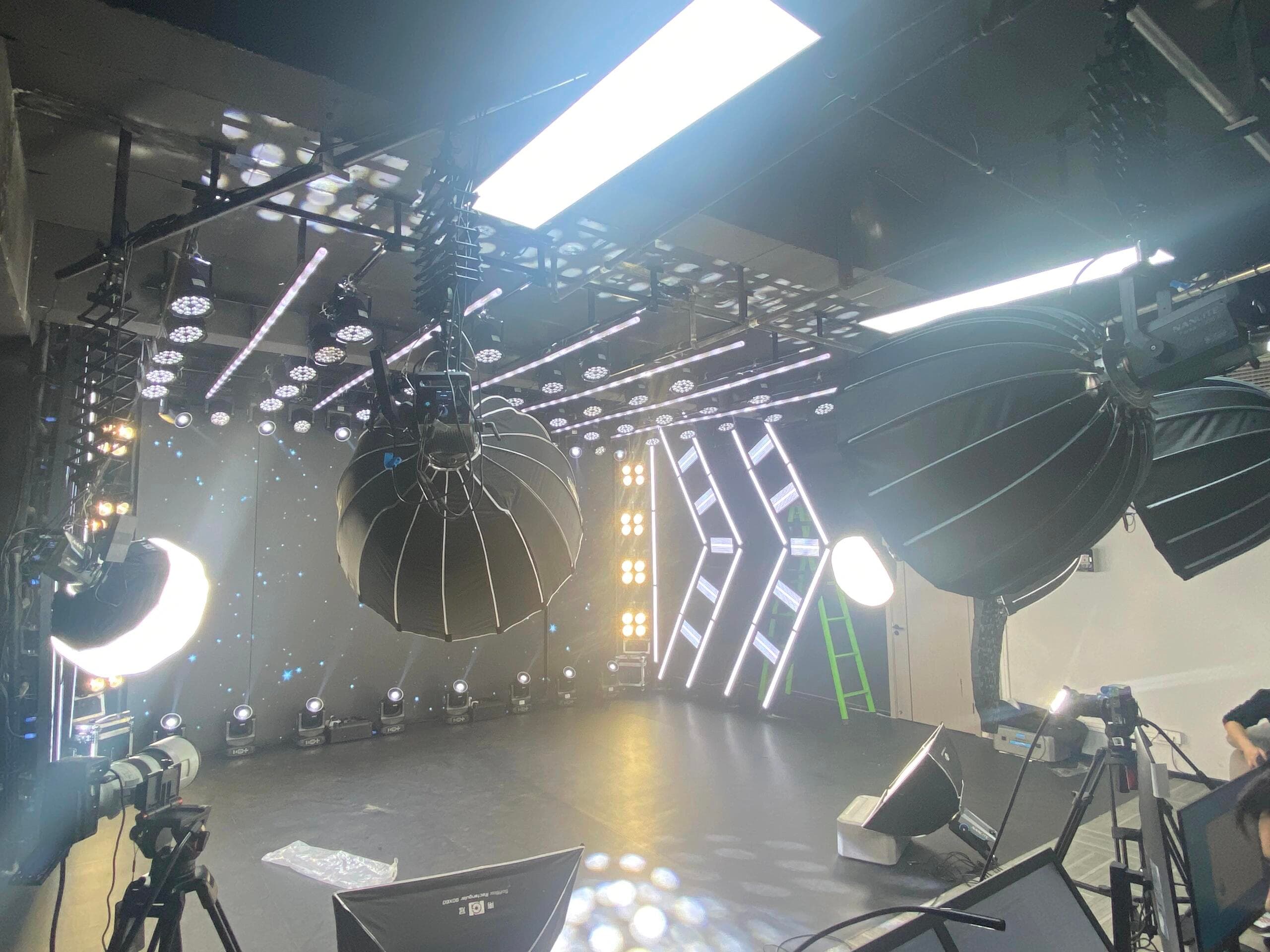

Broadcast-Grade Key Lighting: Beyond atmospheric effects, the authentic restoration of skin tones is the lifeblood of live streaming. Professional-grade softboxes (equipped with Nanlite cinematic sources) are precisely deployed on both sides and above the camera. These high-CRI primary light sources provide large-area, extremely uniform facial fill, ensuring streamers maintain a natural, transparent skin texture even under intense background flicker.

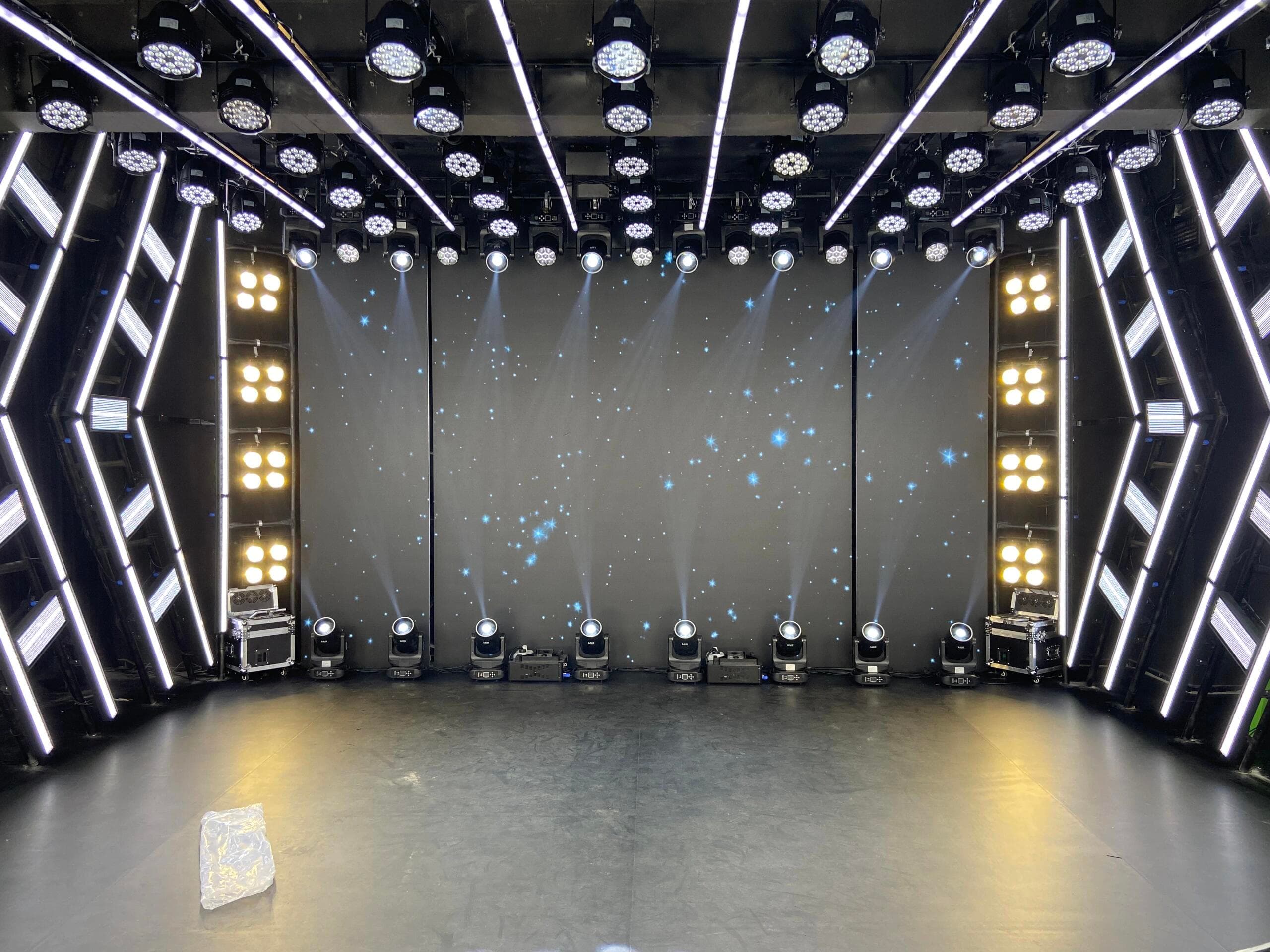

At the visual center (Position C) of the studio, a seamless, high-refresh-rate LED wall is embedded.

Flicker Resistance and Low Latency: The screen utilizes top-tier high-refresh driver ICs, completely eliminating moiré patterns and image tearing often caused by high-speed camera shutters.

Digital Background Extension: As seen in the "Starry Sky" digital assets, this LED wall is more than just a backdrop; it is a digital extension of the physical space. Through low-latency media server scheduling, it can instantly switch scenes according to the broadcast program (such as talent shows or PK battles), providing the audience with an intense sense of immersive participation.

For the optoelectronic systems to perform perfectly, the foundational infrastructure of the studio must be an absolutely controlled "Physical Black Box".

Zero Light Pollution Control: The walls, floors, and ceiling of the performance area all feature an extreme matte black finish. This design acts as an optical black hole, devouring excess diffuse reflections and ambient light pollution caused by the high-intensity lighting matrix, ensuring the camera captures the purest high-contrast details.

Acoustic Intervention: While the visuals are primary, the dark wall and floor substrates also integrate broadband acoustic absorption materials. In the high-SPL, multi-source environment of group broadcasting (background music, overlapping voices), the physical absorption structure effectively cuts off indoor reverberation and flutter echoes, providing a clean acoustic floor for the pickup microphones.

The completion of this full-matrix broadcast studio stands as an engineering benchmark for the deep synergy of audio, light, and vision. Through customized geometric lighting arrays, cinematic key lighting calibration, and extreme black-box spatial control, TYN ACOUSTICS has delivered more than a cool broadcast venue; it is a high-performance digital engine capable of continuously outputting top-tier visual signals with absolute operational certainty.
