Project Overview and Visual Engineering Challenges
In the construction of modern digital corporate exhibition halls, the core challenge lies in transforming abstract medical big data and complex business logic into intuitive and impactful visual experiences. This project was designed for a leading enterprise focused on "digital health platforms".
Moving beyond traditional flat display solutions, we deeply utilized ultra-wide curved LEDs, spatial irregular curved screens, and multi-channel projection blending technologies. By deeply coupling optoelectronic displays with the physical architectural space, we constructed a "de-bordered" panoramic data interaction environment, achieving an engineering leap from one-way information transmission to full-immersion visual envelopment.
Welcome Vision: Seamless Envelopment with Ultra-Wide Curved Screens

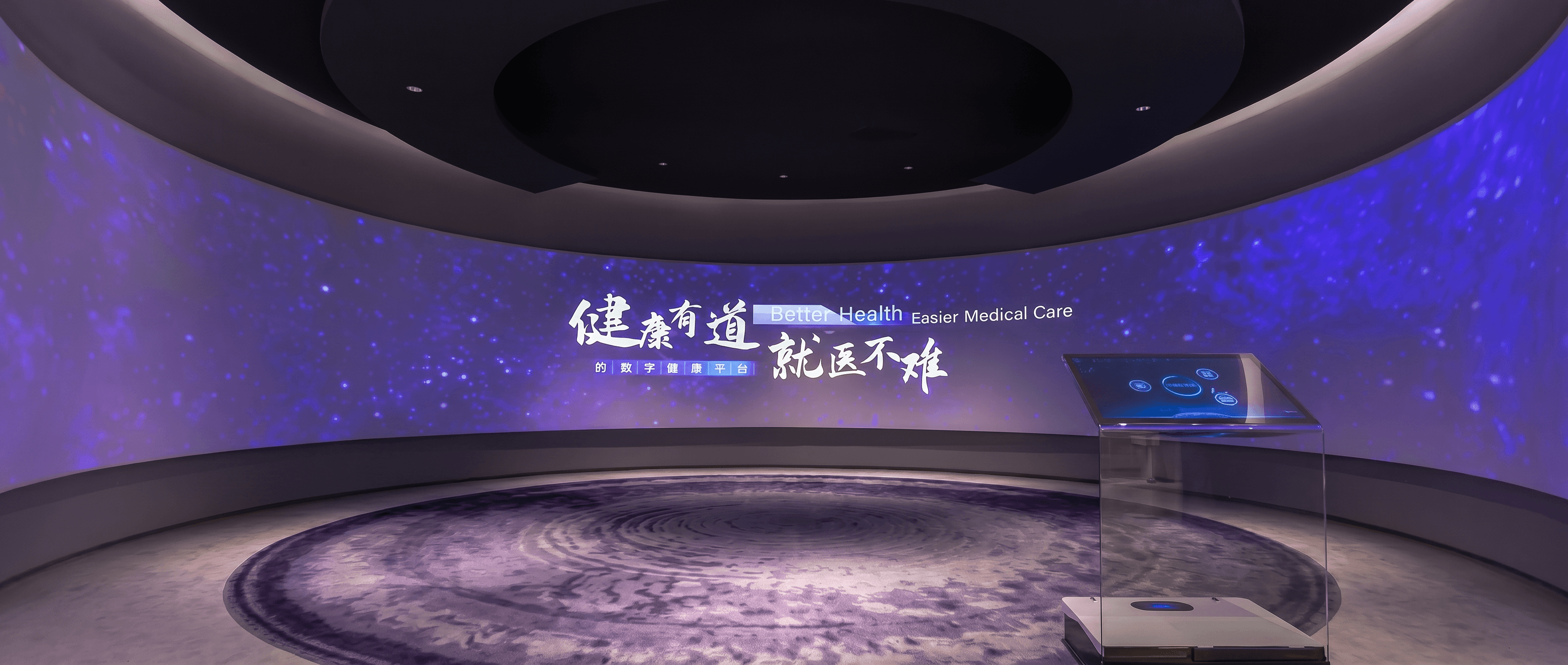

The entrance section of the exhibition hall needs to establish the company's grand vision of "Better Health, Easier Medical Care." Here, we deployed a massive curved display system.
Optical Envelopment and Field of View (FOV) Optimization: We customized a highly fitted curved display architecture based on the circular arc profile of the entrance hall. By precisely calculating the optimal standing point for viewers, the curvature radius was set to an optimal range, maximizing the horizontal Field of View (FOV) so that the starry background and core slogans completely envelop the viewer's field of vision.
Touch Hub Integration: In front of the massive curved screen, we integrated a smart control console made of transparent acrylic. Operators can schedule high-resolution media resources on the screen with low latency via the touch panel, achieving precise interaction and visual synergy between "human, machine, and screen".
Spatial Visual Reconfiguration: Suspended Irregular Curved Display Matrix
The central hub area of the exhibition hall breaks away from traditional orthogonal geometry, employing an extremely complex suspended irregular visual installation.

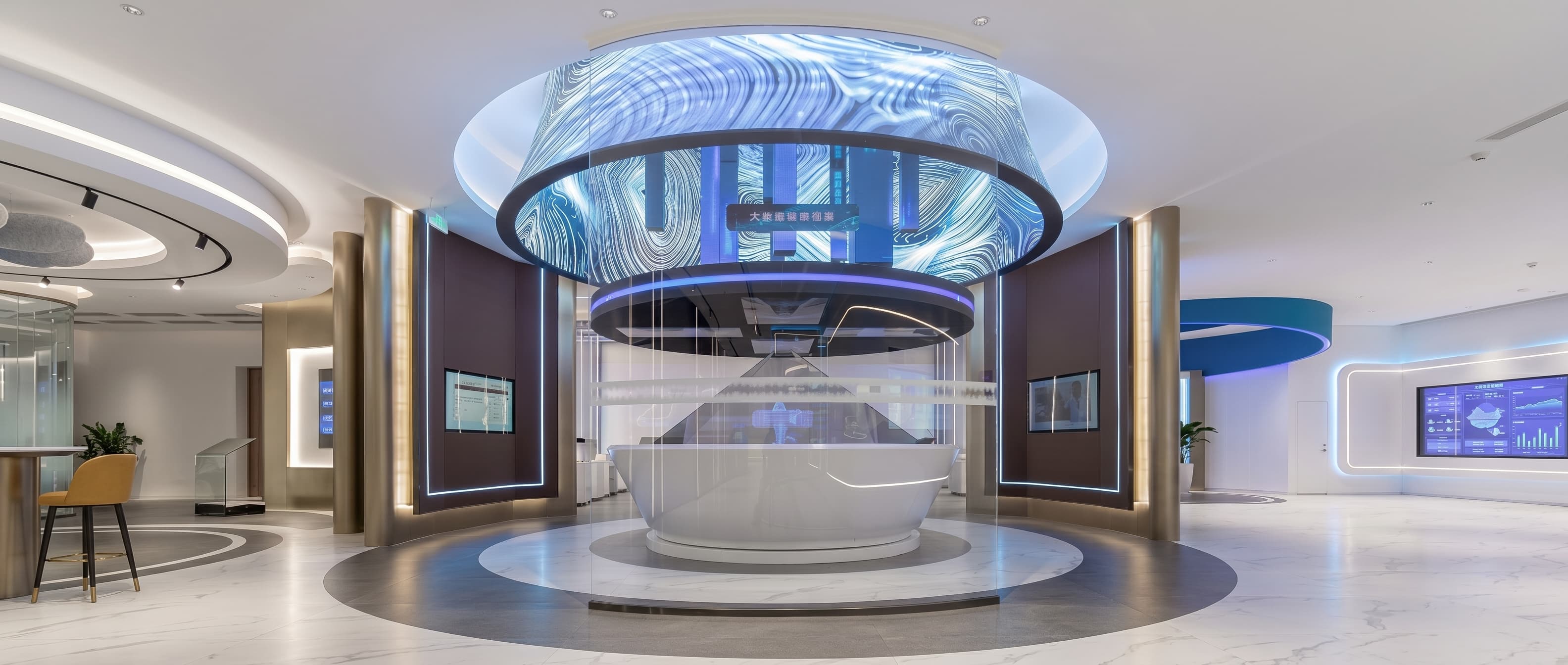

Flexible Modules and Irregular Splicing: The core visual focus is a massive inverted truncated cone (or ring) irregular curved screen. This required highly customized flexible LED display modules and irregular PCB backplanes. Our engineers achieved millimeter-level tolerance control during the factory phase, ensuring that when assembling this structure with dual internal and external curvatures, the display pixel matrix could achieve a perfectly smooth physical transition without any visible seams or polygonal angles.
Structural Decoupling and Holographic Fusion: This irregular screen utilizes a heavy-duty overhead suspension structure, floating above a semi-transparent circular base, and cleverly integrates holographic or transparent display media in the lower section. This futuristic "cyberpunk" style physical reconfiguration provides an incredibly impactful hardware carrier for 360-degree omnidirectional big data displays.
| Parameter | Value | Notes |
|---|---|---|
| Display Geometry | Dual Curvature | The central display required customized flexible modules and backplanes to resolve internal and external curved transitions. |
| Assembly Control | Millimeter Tolerance | Factory-phase tolerance control ensured a seamless physical and visual transition across the irregular display structure. |
Panoramic Data Cabin: Multi-channel Projection Blending (Edge Blending)
To deeply demonstrate complex policy mechanisms, standardized clinical pathways, and underlying data models such as the "Tianjin Digital Health Community," we constructed a three-sided enclosed panoramic data cabin.
Multi-channel Seamless Blending Algorithms: For this deep U-shaped spatial structure, a single display device cannot meet the ultra-high resolution requirements. We deployed multiple high-lumen engineering projectors and utilized underlying edge-blending and geometric warping algorithms.
Pixel-level Precision Mapping: The blending processor performed extremely fine Gamma correction and black-level compensation in the overlapping areas, completely eliminating bright bands at the image junctions. Ultimately, extremely dense data charts, flow logics, and text nodes spanning three walls were mapped with pixel-level precision and seamless continuity, creating a highly immersive and tech-driven information space.
| Parameter | Value | Notes |
|---|---|---|
| Projection System | Multi-channel Edge Blending | Multiple engineering projectors were synchronized across the U-shaped enclosure to achieve a continuous panoramic information surface. |
| Mapping Quality | Pixel-level Precision | Gamma correction and black-level compensation eliminated seam brightness and preserved continuity across dense data graphics. |
Conclusion
In this corporate exhibition hall project, from the hardware customization of irregular curved LEDs to the underlying algorithm calibration of multi-channel projection blending, we demonstrated absolute mastery of cutting-edge optoelectronic display technologies.
True system integration is not merely stacking screens; it is the deep customization of audio, light, and vision according to spatial physical characteristics, transforming cold data into highly persuasive commercial visual assets through ultimate engineering means.
